SPECweb96 Result

Compaq:	Compaq AlphaServer DS10
Zeus:	Zeus 1.3.0

SPECweb96 = 2450

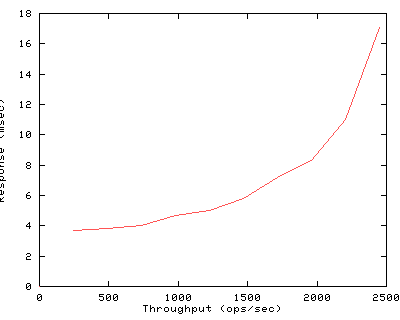

Performance

Throughput (ops/sec)	Response (msec)
245	3.7
490	3.8
735	4.0
980	4.7
1225	5.0
1470	5.8
1715	7.2
1961	8.3
2204	11.0
2450	17.1

Configuration

Availability Dates
Hardware	May-99
HTTP Software	Nov-97
Operating System	Apr-99

Hardware

Vendor Compaq

Model Compaq AlphaServer DS10

Processor 466MHz 21264

# of Processors 1

Primary Cache 64KB(I)+64KB(D) on chip

Secondary Cache 2MB off chip

Other Cache none

Memory 1GB

Disk Subsystem 4-9.1GB (DS-RZ1DB-VW) drives

Disk Controllers Integral FW SCSI

Other Hardware

Software

Operating System Compaq Tru64 UNIX V4.0F (Rev. 1229)

File System Type UFS

Other Software none

HTTP Software

Vendor Zeus

HTTP Software Zeus 1.3.0

# of "threads" 1

Server Cache Default

Log Mode common

Test Sponsor
Test Date	May-99
Tested By	Compaq Nashua, NH
SPEC License	2

Network

# of Controllers 1

Network Controllers DEGPA-SA

# of Nets 1

Type of Nets Jumbo Frame Gigabit

Network Speed 1000Mbps

MSL (sec) 30 (Non RFC1122)

Time-Wait (sec) 60 (Non RFC1122)

Load Generators

# of Load Generators 3

# of Processes Each 20

Model Digital Personal WorkStation 600au

Processor 600MHz 21164A

# of Processors 1

Memory 1024MB

Network Controller DEGPA-SA

Operating System Compaq Tru64 UNIX V4.0F (Rev. 1229)

Compiler DEC C V5.2-023

Benchmark Configuration

Maximum Requested Load 2450

Maximum Fileset Size (MB) 1083

Notes

OS Notes

Webserver sysconfigtab tuning:
vm: ubc-maxpercent=50, vm-mapentries=50000,
vm-vpagemax=131072, vm-maxvas=0x40000000000
proc: max-proc-per-user=1024, maxusers=1024,
per-proc-data-size=0x40000000000,
max-per-proc-data-size=0x40000000000,
max-per-proc-address-space=0x40000000000,
per-proc-address-space=0x40000000000
inet: ipqs=3, tcbhashnum=3, tcbhashsize=4096,
tcp_sendspace=60000, tcp_recvspace=60000,
net: netisrwakeupthreshold=1, netisrthreads=1
socket: somaxconn=32767, sominconn=32767,
umc=1
generic: kmemhighwater-128=1400, kmemhighwater-192=2000,
kmemhighwater-256=4000, kmemhighwater-320=3000,
kmemhighwater-12k=1000
alt: send_coal=128, send_ticks=100,
option1=1
Load Generator sysconfigtab tuning:
proc: max-proc-per-user=1024, maxusers=1024,
max-threads-per-user=1024
socket: somaxconn=32765, sominconn=32765
inet: ipport_userreserved=52600
Zeus tuning:
/zeus -m 1024 -b 819200 -t 20000 -q

Network Notes

Network hardware...
(1) ALTEON ACEswitch 180 Gigabit Ethernet Switch

Test Run Details

Detailed Statistics
Load	Throughput	Class	Target Mix	Actual Mix	Error Percent	Mean Response	Std Dev Response
245	245	0	35.0%	35.0%	0.00%	2.54	7.18
		1	50.0%	50.0%	0.00%	2.83	7.59
		2	14.0%	14.1%	0.00%	5.68	10.38
		3	1.0%	1.0%	0.00%	62.23	64.93
490	490	0	35.0%	35.0%	0.00%	2.79	8.91
		1	50.0%	50.0%	0.00%	3.00	9.12
		2	14.0%	14.0%	0.00%	5.56	11.41
		3	1.0%	1.0%	0.00%	51.80	57.43
735	735	0	35.0%	35.0%	0.00%	3.12	9.49
		1	50.0%	50.0%	0.00%	3.28	9.55
		2	14.0%	14.0%	0.00%	5.59	11.76
		3	1.0%	1.0%	0.00%	48.32	53.31
980	980	0	35.0%	35.0%	0.00%	3.83	10.77
		1	50.0%	50.0%	0.00%	3.96	10.82
		2	14.0%	14.0%	0.00%	6.25	13.04
		3	1.0%	1.0%	0.00%	50.26	58.72
1225	1225	0	35.0%	35.0%	0.00%	4.13	11.12
		1	50.0%	50.0%	0.00%	4.27	11.23
		2	14.0%	14.0%	0.00%	6.61	13.57
		3	1.0%	1.0%	0.00%	48.75	58.23
1470	1470	0	35.0%	35.0%	0.00%	4.88	12.17
		1	50.0%	50.0%	0.00%	5.03	12.21
		2	14.0%	14.0%	0.00%	7.53	14.83
		3	1.0%	1.0%	0.00%	53.35	65.31
1715	1715	0	35.0%	35.0%	0.00%	6.21	14.10
		1	50.0%	50.0%	0.00%	6.39	14.27
		2	14.0%	14.0%	0.00%	8.98	16.80
		3	1.0%	1.0%	0.00%	59.11	72.52
1960	1961	0	35.0%	35.0%	0.00%	7.23	16.03
		1	50.0%	50.0%	0.00%	7.41	16.10
		2	14.0%	14.0%	0.00%	10.23	19.07
		3	1.0%	1.0%	0.00%	65.46	84.74
2205	2204	0	35.0%	35.0%	0.00%	9.67	20.25
		1	50.0%	50.0%	0.00%	9.81	20.17
		2	14.0%	14.0%	0.00%	13.15	23.48
		3	1.0%	1.0%	0.00%	88.21	141.04
2450	2450		0.0%	0.0%	0.00%
			0.0%	0.0%	0.00%
			0.0%	0.0%	0.00%
			0.0%	0.0%	0.00%

Wed Jun 30 20:46:42 1999

First published at SPEC.org on 29-Jun-1999
